Quick Details

  • Condition: New
  • Type: Rapier Loom
  • Application: Fabric
  • Production Capacity: 300sets / Month
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: wmd
  • Model Number: wmd, dobby weaving machine
  • Dimension(L*W*H): 2800x1600x1200mm
  • Weight: 1.5-2.5tons
  • Power(W): 1.5-4.5kw
  • Certification: ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Reed Width: 150cm-360cm
  • Rotation speed: Designing speed 160~250rpm.
  • Weft insertion: 160-180m/minby left and right flexible rapier band & head.
  • Warp beam dia.: Standard 600mm.
  • Cloth Roll Dia.: 300mm, can match with big rolling cloth mechanism.
  • Weft feeder: FDP electronic weft accumulator.
  • Beat-up motion: Crankshaftweft insertion and beating-up.
  • Lubrication: Oiling pump, automatic oil for dobby.
  • Electric circuit: Standard modularization design, LED displays working condition.

Packaging & Delivery

Packaging Details nude packing
jute fabric/bags making machine customer-made textile weaving rapier loom from WMD
Delivery Time 30 days after the deposit
Product Description

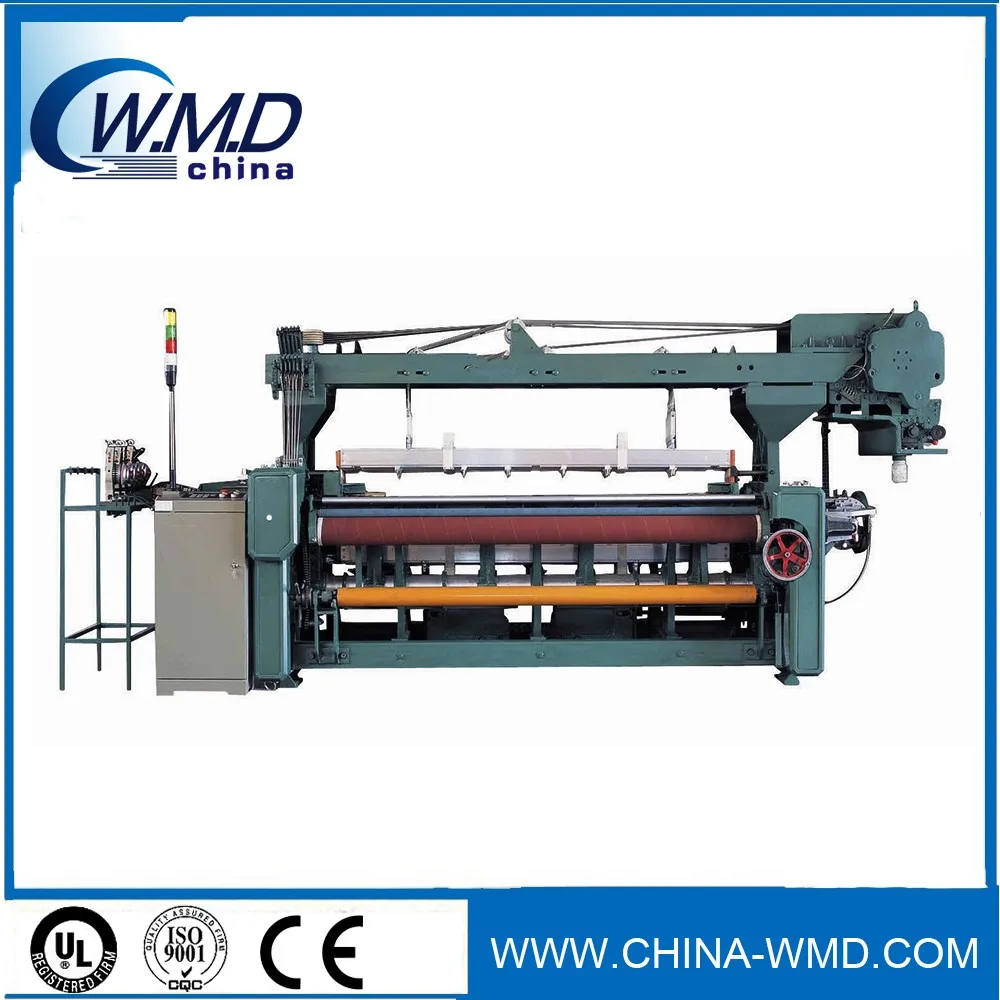

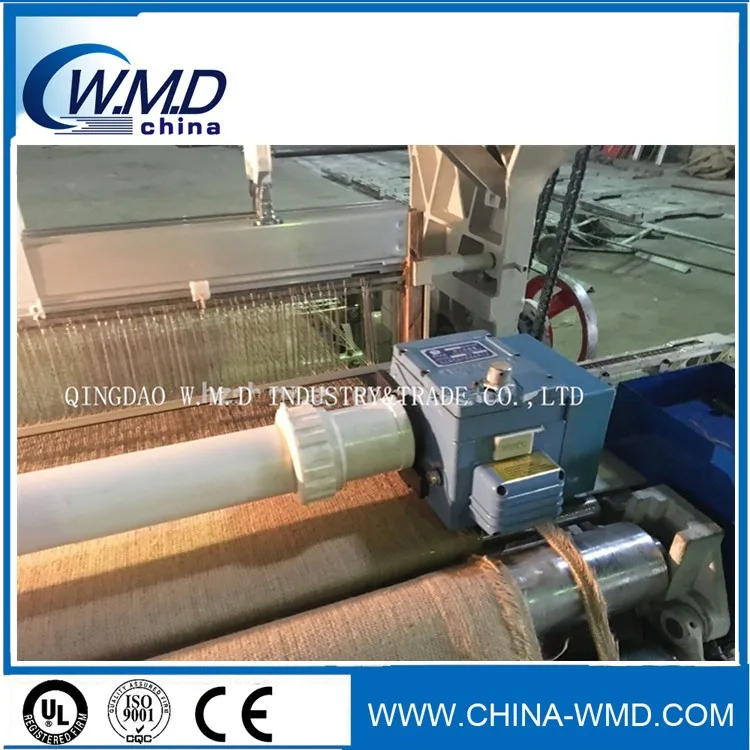

jute fabric/bags making machine customer-made textile weaving rapier loom from WMD
Based on GA798M-1 Tappet Rapier Loom we specially developed GA798M-II PP, PE Jute Fabrics Rapier Loom, which with materials of PP, PE, HDPE, etc. chemical fiber, Glass Fiber and other blend fiber to weave sunshade screen, PP woven bags, fish net, construction protecting net, glass Fiber fabric, jute bags and so on.
Characteristics: stable operation and easy maintenance, low noise, beautiful exterior, fast reactive permanent super motor with low power consumption, good comprehensive performance ensure the safety and stabilization of the system.

Main Specification

china popular jute weaving jute loom high production rapier machinery with best price

Model Number
GA738W PP, PE Fabrics Rapier Loom
Reed width (cm)
150,180, 200, 230, 280, 330, 360. 490(CM)
Rotation speed
130-250rpm .Design speed 130~250rpm.
Weft insertion
130--180 weft/min picked by left and right rapier band & head.
Warp beam dia.
Standard 600mm.
Cloth roll dia.
300mm-500mm, can match with big rolling fabric mechanism.
Weft feeder
FDP electronic weft accumulator.
Driving control
Rated 1.8-2.2kw main motor power, 3-phase line, 380v, 50hz; Electronic -magnetic clutch brake unit.
Beat-up motion
Crankshaft weft insertion and beating-up.
Lubrication
Mechanical oiling pump
Electric circuit
Standard modularization design, LED displays working condition.
Weft selection
driven by mechanical dobby weft selector
Yarn range
Spun yarns: 500tex (1.2Ne)~5tex (120Ne).
flat net yarns pp pe material
Sheddingmotion
6-8 pieces mechanical shedding motion
Let-off
Semi positive type mechanical let-off system controlled by feeder roller through linkages ensuring uniform warp beam tension.
Take-up motion
Continuous gapless take-up, adjustable according to weft density of the cloth by pick wheels.
Selvage device
Mechanical selvage cutter, Leno selvedge.
Temple: ring type copper cylinder with pin.
Stop motion
Warp yarn: separate electric automatic warp stop motions; Weft yarn: high-sensitivity piezoelectricity detector control automatic stop. Stop display:1- 4-colour multi-function indication lamps.
Electronic control
Micro-computer functional automatic control system with memory cards, convenient and easy button operation, instant adjustment.
Size and weight
450*250*260cm3, 1.8~3.5 MTs.

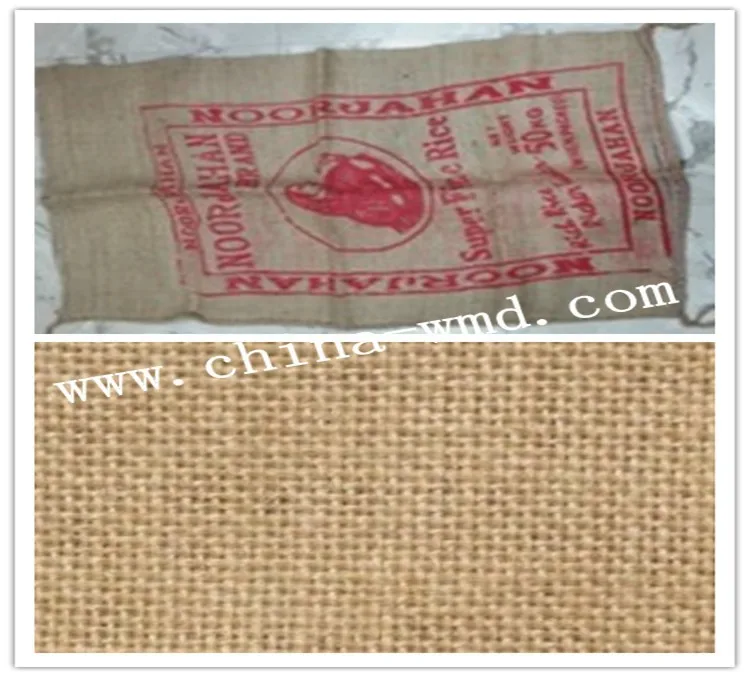

Fabric show

china popular jute weaving jute loom high production rapier machinery with best price

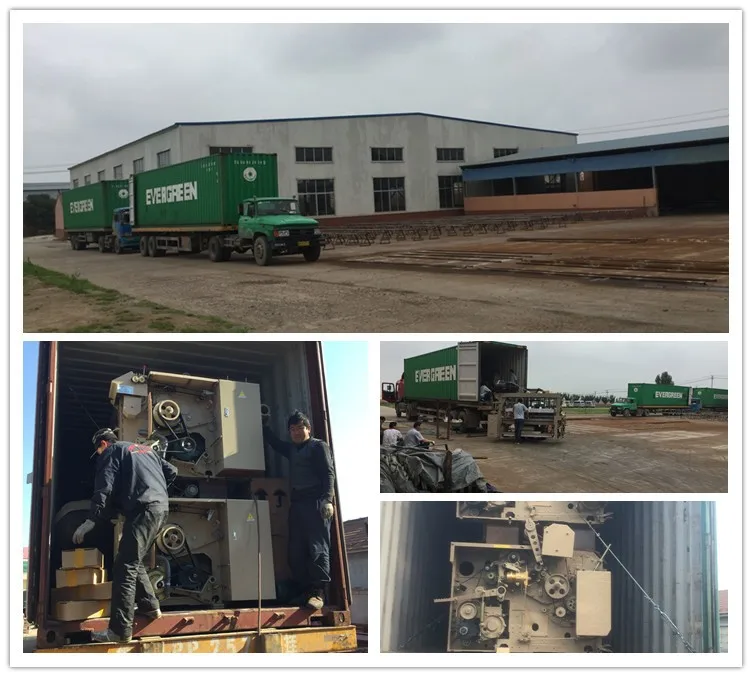

Packing&Shipping
Company Introduction

Qingdao W.M.D Industry &Trade Co., Ltd. is a collection of textile machinery, woodworking machinery, construction machinery, environmental protection machinery and logistics equipment products such as research, development, manufacturing, marketing ,international trade and service as one of the international integrated industry and trade company.
china popular jute weaving jute loom high production rapier machinery with best price
Qingdao W.M.D Industry&Trade Co.,Ltd has own factory,and also have several large local factory joint venture.our company focus on a variety of machinery research and development of diversified company.headquarters located in china famous machinery town- Shandong Qingdao Wangtai Town,15km away from Qingdao port,57 km away from Liuting international airport, Around the Jiaozhou bay experssway,Tongsan expressway,the traffic is very convenient,the geographical position is superior.
china popular jute weaving jute loom high production rapier machinery with best price
Our company promises to the best quality, the most perfect after-sale service, sincere cooperation with customers from all over the world, and jointly create a better future.

Customer Witness
Our Service

Reply customer inquiry in 24 working hours.

Experienced answer all your questions in profession and fluent English.

Customized design is available OEM&ODM are welcome.

We are manufacture, we can provide best quality with best price to you.

Prominent and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

FAQ

1) . Q: Are you a manufacturer or trade company?

A: We are a professional manufacturer holding our own international trade company, for that we can better understand customer’s needs and offer a reasonable price.

2).Q:Are you available for visiting the factory?

A: for long term business, we are really welcome all our friends to come here and visit our factory in order to On-the-spot investigation of our production capacity.

3).Q:Is the price changeable?

A:We offer reasonable price for every clients,and the price is changeable according to the purchase amounting.

4).Q:How about the quality?

A:Professional assembly line work and strict quality test system can ensure your high quality requirement.

5).Q: How is the after-sale service?

A: We offer after-sale overseas service, Engineers available to service machinery overseas.
